Ejector Pins Type A and Type C

Over 1 million cycles!
Extratores

Polimold has permanent stock of several dimensions.

Made of steel H13, ejector pins follow strict international standards.


 Contact Polimold

More Information

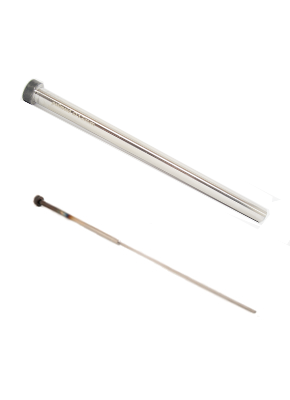

Type A


Other dimensions according to DIN 1530

Subtitle:


D1= Body Diameter
D2= Head Diameter
R= Head Radius
K= Head Thickness
L= Overall Lenght
Material 1.2344 (H13)
Standard= ISO 6751
Heat Treatment: = Steel and Nitrided
Max. Working Temperature: 500º C - 550ºC
Core Hardness: 40 - 45 HRC
Surface Layer Hardness: 65 - 70 HRC

How to order:
Specify the item with the diameter D1 and length L, followed by pin type "A".





Itens available in stock

Type C

Subtitle:


D1= Tip Diameter
D2= Head Diameter
D3= Body Diameter
R= Head Radius
K= Head Thickness
L1= Overall lenght
L2= Body lenght
Material 1.2344 (H13)
Standard= ISO 8694
Heat Treatment= Steel and Nitrided
TMax. Working Temperature: 500º C - 550ºC
Core Hardness: 40 - 45 HRC
Surface Layer Hardness: 65 - 70 HRC
Tolerance Ø d1 g6
Tolerance Ø d2 0,0/-0,2mm
Tolerance Ø d3 h11
Tolerance K 0,0/-0,05mm
Tolerance L1 +2,0/-0,0mm
Tolerance L2 -1,0/-2,0mm

How to order: :
Specify the item with the diameter D1 and length L, followed by pin type "A".
