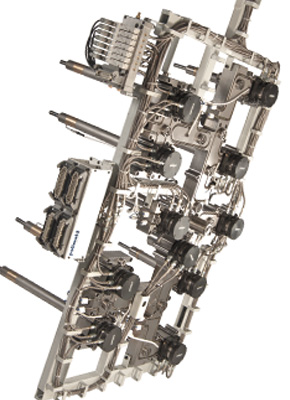

Valved Hot Runner System

Valved Hot Runner System
Precise and perfect injection!
The valve gate Hot Runner System combines the quality standards of Polimold with the high technology, resulting in a clean and precise injection. It is recommended to companies that want to increase the productivity and the quality of the product.
10 year Warranty Polimold100% Domestic Industry
 Contact Polimold

More Information

Description

Hot Runner System

The valve gate Hot Runner System is used for plastic parts that require perfect finishing on the injection point and when there's a need to sequence the injection, fundamental for technical parts on electronically industry, automobile, etc.

Available on two drive versions: hydraulic and pneumatic.

Main advantages:
  • Pressure lower than in conventional injection system.
  • Better injection flow and less shearing of the material.
  • On the sequencial injection, the weld line turns almost imperceptible.
  • Essential for parts with different volumetric mass.

Mounting Type

There are two ways to assemble the VALVE GATE Hot Runner System:


Hot Half

Plates with precise adjustments that protects and guarantee the integrity of the Hot Runner System. The manufacturing of the Hot Half goes through AN intense quality control in a temperature controlled room, assembled by our experts.


Facility (Drop in)

Drop in system, that integrates all the parts of DRIVING, electrical power and cooling, making it easier the assembly and maintenance of the Hot Runner System. That way, you don't need to worry with the machining of the system on the mold.

Series

Polimold has many dimensions of NOZZLES for application according to the REQUIREMENT of the product. Get to know the available series on the market:

(*) Only reference values may vary according to the material, thickness and geometry of the part injected.

Serie Line Indication Image Download
3D
V25 Polivalve High productivity molds with small parts (weight up to 30g *) with limited physical space. Injection of commodity materials (PP, PE, PS). Mounted only with hot half. Imagem Ampliada download Catalog Link 3D
V50 Polivalve High productivity moulds with small parts (weight up to 80g *), with a r.o.i. better than 25 series. Injection of commodity materials (PP, PE, PS). Mounted only with Hot Half. Imagem Ampliada download Catalog Link 3D
V200 Polivalve Small to medium size parts (weight up to 180g *). Have variety of tips. Indicated for injection of varius materials. Mounted only with hot half. Imagem Ampliada download Catalog Link 3D
V500 Polivalve Small to medium size parts (weight up to 300g *). Have variety of tips. Indicated for injection of varius materials. Mounted with Hot Half or Facility. Imagem Ampliada download Catalog Link 3D
V800 Polivalve Medium to large parts (up to 500g * weight). Have variety of tips. Indicated for injection of varius materials. Mounted with Hot Half or Facility. Imagem Ampliada download Catalog Link 3D
V1000 Polivalve Large parts (more than 1000g * weight). Have variety of tips. Indicated for injection of varius materials. Mounted with Hot Half or Facility. Imagem Ampliada download Catalog Link 3D
Ponteiras Polivalve The tips of Polivalve line can be used in many different types of materials. See the corresponding nozzle on the link alongside. Imagem Ampliada download Catalog Link 3D

Applications

The Polimold Hot Runner System is recommended to the injection of plastic parts in many markets like: automotive, packing, cosmetics, electronic devices, among others. Please check below some cases of the Valved Hot Runner System.

Gallery

Cases

Polimold is fueled by the challenge of creating products that exceed the expectations of clients! Check a few of our cases using the Valved Hot Runner System.

  • Central injection with lateral actuation +

    Name of the part: Para choque dianteiro

    Material: PP

    Weight: 3.800 g

    Cavities: 1

    Injection Points: 7

    Injection: VALVE GATE Hot Runner System

    Serie: V800

    Line: Polivalve

    Polimold Solution: On this case, we needed a central valve gate injection, aligned machine nozzle.

    We developed a single valve gate nozzle where the actuation's valve pin was placed on the side, avoiding the support to be on the same position of the feeder bushing (injection press barrel).

  • Injections with difficult access with perfect finish +

    Name of the Part: Flip Top

    Material: PP

    Weight: 4,4 g

    Cavities: 12

    Injection Points: 12

    Injection: VALVE GATE Hot Runner System with Hot Half

    Serie: V25

    Line: Polivalve

    Polimold SolutionFor this project, the main objective was to place the injection points in a way to minimize the KNIT lines.

    Based on this, we developed a valve gate injection bush exclusively for small diameters, resulting in a perfect finishing and reduced injection's pressure.

  • Less aparent KNIT lines +

    Name of the part: Side of the door

    Material: PP

    Weight: 800 g

    Cavities: 1

    Injection points: 4

    Injection: Sistema de Câmara Quente Valvulado Facility

    Serie: V800

    Line: Polivalve

    Polimold Solution:On this project, the main need was to place the points to reduce the seam lines.

    After the analysis of the cavity's flow by our engineer team, we created the best possible flow condition to develop a part with less APPARENT seam lines.

  • Reducing the Costs of Injection +

    Name of the Part: Fender

    Material: PEAD

    Weight: 1.050 g

    Cavities: 1 + 1

    Injection Points: 11

    Injection: Facility - VALVE GATE Hot Runner System

    Serie: V800

    Line: Polivalve

    Polimold Solution:The client requested to reduce the injection's pressure and therefore reduced the size of the injector machine. The initial project was made by 6 injection points (client's suggestion) and after the flow's analysis, we detected that this layout would require a 2.500 tons machine, which was impracticable for our client.

    After new studies and tests, we concluded that using 11 INJECTION points, the pressure would be reduced in a way that he could use a 1.600 ton machine, reaching his goal of reducing costs on the injection.
